200N - 400N 推力

無人機/飛行摩托/ 電驅動涵道風扇動力系統

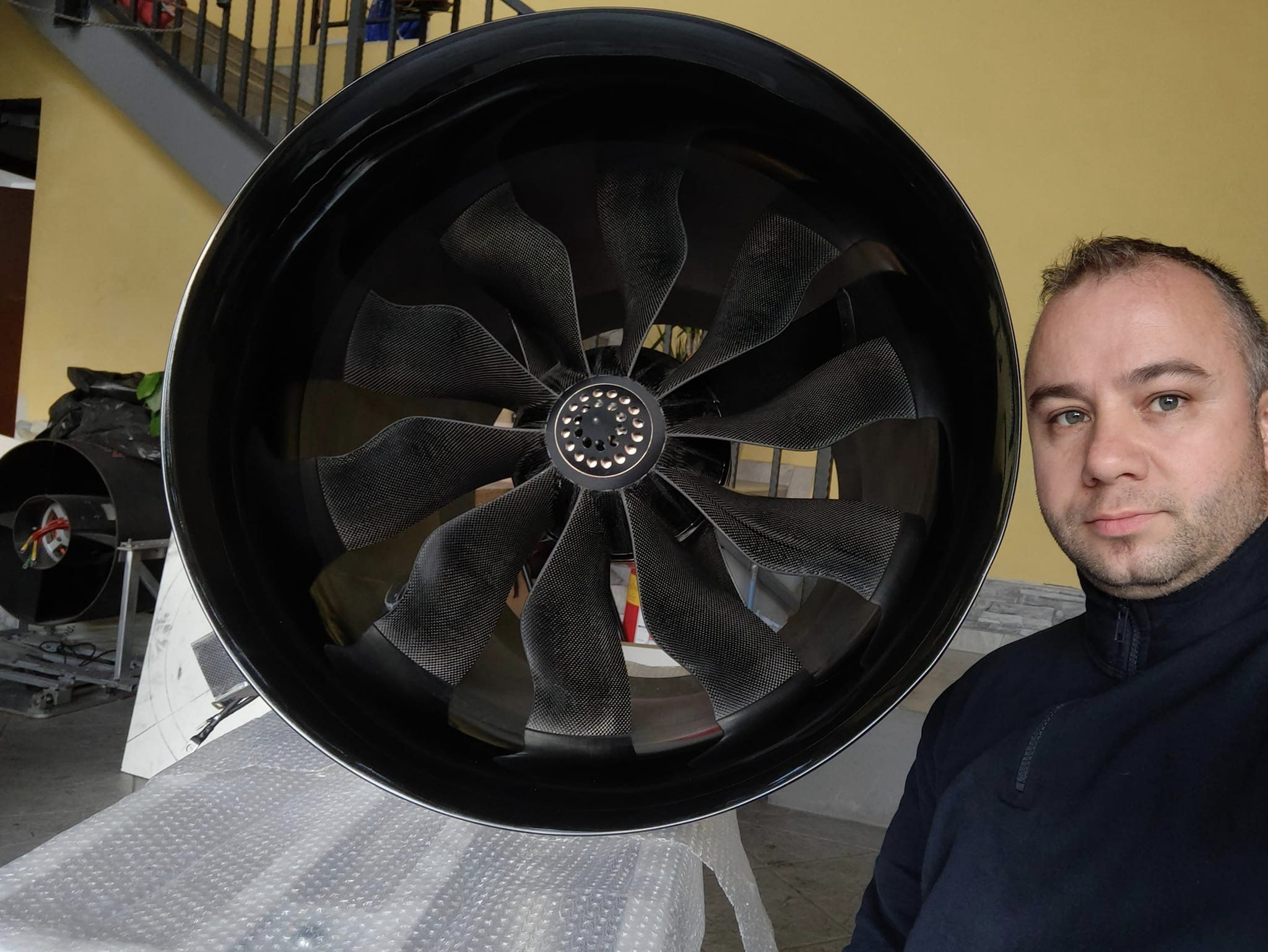

UT-250mm

TECHNICAL DATA

Cylinder internal diameter: 252mm

Weight with inlet lip and mounting brackets: 1200g,

Thrust range: 200N - 400N

Exhaust speed range: 90m/s - 130m/s

RPM range: 12.000RPM - 18.000RPM

Input power: 12kW - 27kW

Allowed battery: 12S - 24S 16.000+mAh

Allowed controller (ESC): 15KW - 30KW

Global efficiency: 80%

Weight with inlet lip and mounting brackets: 1200g,
Thrust range: 200N - 400N
Exhaust speed range: 90m/s - 130m/s
RPM range: 12.000RPM - 18.000RPM
Input power: 12kW - 27kW
Allowed battery: 12S - 24S 16.000+mAh
Allowed controller (ESC): 15KW - 30KW
Global efficiency: 80%

提供商：中國陜西聯合動力通用航空技術有限公司
